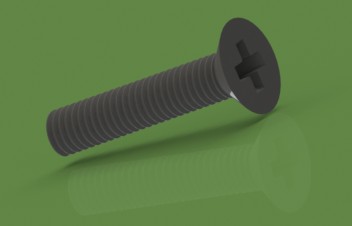

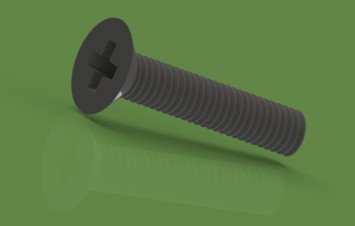

[推荐]PVC十字沉头螺丝

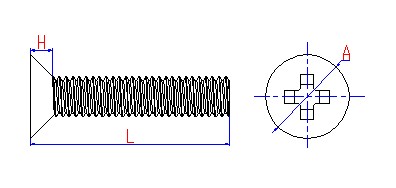

Product  Coding

A

H

槽号

M2

3.5-4.4

1.2

0

M3

5.2-6.3

1.7

Ⅰ

M4

8.0-9.4

2.7

Ⅱ

M5

8.9-10.4

2.7

Ⅱ

M6

10.9-12.6

3.3

Ⅲ

M8

15.4-17.3

4.6

Ⅴ

M10

17.8-20.0

5

Ⅴ

Product coding

Specifications

Product coding

Specifications

B0300I020040004

M2 ×0.4× 4mm

B0300I060100005

M6 ×1.0× 5mm

B0300I020040005

M2 ×0.4× 5mm

B0300I060100008

M6 ×1.0× 8mm

B0300I020040006

M2 ×0.4× 6mm

B0300I060100010

M6 ×1.0×10mm

B0300I020040008

M2 ×0.4× 8mm

B0300I060100012

M6 ×1.0×12mm

B0300I020040010

M2 ×0.4×10mm

B0300I060100030

M6 ×1.0×30mm

B0300I020040012

M2 ×0.4×12mm

B0300I060100035

M6 ×1.0×35mm

B0300I020040016

M2 ×0.4×16mm

B0300I060100040

M6 ×1.0×40mm

B0300I020040020

M2 ×0.4×20mm

B0300I060100045

M6 ×1.0×45mm

B0300I060100050

M6 ×1.0×50mm

B0300I030050005

M3 ×0.5× 5mm

B0300I060100055

M6 ×1.0×55mm

B0300I030050006

M3 ×0.5× 6mm

B0300I060100060

M6 ×1.0×60mm

B0300I030050008

M3 ×0.5× 8mm

B0300I060100065

M6 ×1.0×65mm

B0300I030050010

M3 ×0.5×10mm

B0300I060100070

M6 ×1.0×70mm

B0300I030050012

M3 ×0.5×12mm

B0300I030050016

M3 ×0.5×16mm

B0300I080125010

M8 ×1.25×10mm

B0300I030050020

M3 ×0.5×20mm

B0300I080125016

M8 ×1.25×16mm

B0300I030050025

M3 ×0.5×25mm

B0300I080125020

M8 ×1.25×20mm

B0300I030050030

M3 ×0.5×30mm

B0300I080125025

M8 ×1.25×25mm

B0300I080125030

M8 ×1.25×30mm

B0300I040070004

M4 ×0.7× 4mm

B0300I080125035

M8 ×1.25×35mm

B0300I040070006

M4 ×0.7× 6mm

B0300I080125040

M8 ×1.25×40mm

B0300I040070008

M4 ×0.7× 8mm

B0300I080125050

M8 ×1.25×50mm

B0300I040070010

M4 ×0.7×10mm

B0300I080125060

M8 ×1.25×60mm

B0300I040070012

M4 ×0.7×12mm

B0300I080125070

M8 ×1.25×70mm

B0300I040070016

M4 ×0.7×16mm

B0300I040070020

M4 ×0.7×20mm

B0300I100150012

M10×1.5×12mm

B0300I040070025

M4 ×0.7×25mm

B0300I100150016

M10×1.5×16mm

B0300I040070030

M4 ×0.7×30mm

B0300I100150020

M10×1.5×20mm

B0300I040070035

M4 ×0.7×35mm

B0300I100150025

M10×1.5×25mm

B0300I040070040

M4 ×0.7×40mm

B0300I100150030

M10×1.5×30mm

B0300I100150035

M10×1.5×35mm

B0300I050080006

M5 ×0.8× 6mm

B0300I100150040

M10×1.5×40mm

B0300I050080008

M5 ×0.8× 8mm

B0300I100150050

M10×1.5×50mm

B0300I050080010

M5 ×0.8×10mm

B0300I100150060

M10×1.5×60mm

B0300I050080012

M5 ×0.8×12mm

B0300I050080016

M5 ×0.8×16mm

B0300I050080020

M5 ×0.8×20mm

B0300I050080025

M5 ×0.8×25mm

B0300I050080030

M5 ×0.8×30mm

B0300I050080035

M5 ×0.8×35mm

B0300I050080040

M5 ×0.8×40mm
