[推荐]十字槽沉头螺丝-DIN
 |

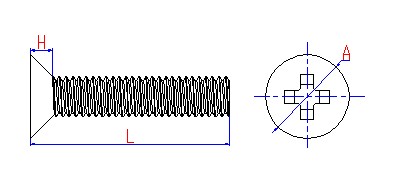

Product Coding |
A |
H |
槽号 | |
|
M2 |
3.5-3.8 |
1.2 |
0 | ||
|
M3 |
5.2-5.6 |
1.65 |
Ⅰ | ||
|
M4 |
7.2-7.5 |
2.2 |
Ⅱ | ||
|
M5 |
8.9-9.2 |
2.5 |
Ⅱ | ||
|
M6 |
10.5-11 |
3 |
Ⅲ | ||
|
M8 |
14.0-14.5 |
4 |
Ⅴ | ||
|
M10 |
17.5-18.0 |
5 |
Ⅴ | ||
|
Product coding |
Specifications |
|
Product coding |
Specifications |
|
B0000I020040005 |
M2 ×0.4× 5mm |
|
B0000I060100008 |
M6 ×1.0× 8mm |
|
B0000I020040006 |
M2 ×0.4× 6mm |
|
B0000I060100010 |
M6 ×1.0×10mm |
|
B0000I020040008 |
M2 ×0.4× 8mm |
|
B0000I060100012 |
M6 ×1.0×12mm |
|
B0000I020040010 |
M2 ×0.4×10mm |
|
B0000I060100030 |
M6 ×1.0×30mm |
|
B0000I020040012 |
M2 ×0.4×12mm |
|
B0000I060100035 |
M6 ×1.0×35mm |
|
B0000I020040016 |
M2 ×0.4×16mm |
|
B0000I060100040 |
M6 ×1.0×40mm |
|
B0000I020040020 |
M2 ×0.4×20mm |
|
B0000I060100045 |
M6 ×1.0×45mm |
|
|
|
B0000I060100050 |
M6 ×1.0×50mm | |
|
B0000I030050005 |
M3 ×0.5× 5mm |
|
B0000I060100055 |
M6 ×1.0×55mm |
|
B0000I030050006 |
M3 ×0.5× 6mm |
|
B0000I060100060 |
M6 ×1.0×60mm |
|
B0000I030050008 |
M3 ×0.5× 8mm |
|
B0000I060100065 |
M6 ×1.0×65mm |
|
B0000I030050010 |
M3 ×0.5×10mm |
|
B0000I060100070 |
M6 ×1.0×70mm |
|
B0000I030050012 |
M3 ×0.5×12mm |
|
| |
|
B0000I030050016 |
M3 ×0.5×16mm |
|
B0000I080125010 |
M8 ×1.25×10mm |
|
B0000I030050020 |
M3 ×0.5×20mm |
|
B0000I080125016 |
M8 ×1.25×16mm |
|
B0000I030050025 |
M3 ×0.5×25mm |
|
B0000I080125020 |
M8 ×1.25×20mm |
|
|
|
B0000I080125025 |
M8 ×1.25×25mm | |
|
B0000I040070006 |
M4 ×0.7× 6mm |
|
B0000I080125030 |
M8 ×1.25×30mm |
|
B0000I040070008 |
M4 ×0.7× 8mm |
|
B0000I080125035 |
M8 ×1.25×35mm |
|
B0000I040070010 |
M4 ×0.7×10mm |
|
B0000I080125040 |
M8 ×1.25×40mm |
|
B0000I040070012 |
M4 ×0.7×12mm |
|
B0000I080125050 |
M8 ×1.25×50mm |
|
B0000I040070016 |
M4 ×0.7×16mm |
|
B0000I080125060 |
M8 ×1.25×60mm |
|
B0000I040070020 |
M4 ×0.7×20mm |
|
B0000I080125070 |
M8 ×1.25×70mm |
|
B0000I040070025 |
M4 ×0.7×25mm |
|
| |
|
B0000I040070030 |
M4 ×0.7×30mm |
|
B0000I100150012 |
M10×1.5×12mm |
|
B0000I040070035 |
M4 ×0.7×35mm |
|
B0000I100150016 |
M10×1.5×16mm |
|
B0000I040070040 |
M4 ×0.7×40mm |
|
B0000I100150020 |
M10×1.5×20mm |
|
|
|
B0000I100150025 |
M10×1.5×25mm | |
|
B0000I050080006 |
M5 ×0.8× 6mm |
|
B0000I100150030 |
M10×1.5×30mm |
|
B0000I050080008 |
M5 ×0.8× 8mm |
|
B0000I100150035 |
M10×1.5×35mm |
|
B0000I050080010 |
M5 ×0.8×10mm |
|
B0000I100150040 |
M10×1.5×40mm |
|
B0000I050080012 |
M5 ×0.8×12mm |
|
B0000I100150050 |
M10×1.5×50mm |
|
B0000I050080016 |
M5 ×0.8×16mm |
|
B0000I100150060 |
M10×1.5×60mm |
|
B0000I050080020 |
M5 ×0.8×20mm |
|
|
|
|
B0000I050080025 |
M5 ×0.8×25mm |
|
|
|
|
B0000I050080030 |
M5 ×0.8×30mm |
|
|
|
|
B0000I050080035 |
M5 ×0.8×35mm |
|
|
|
|
B0000I050080040 |
M5 ×0.8×40mm |
|
|
|
|
|
|
|
|
|
 |
