[推荐]Philips cross recessed countersunk Head Screws-PP

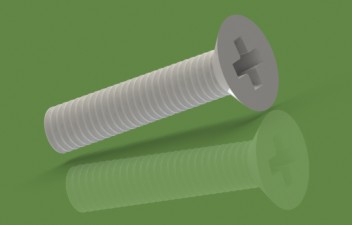

Philips cross recessed countersunk Head Screws-PP

Product Price:面议/电议

Product Material:PP

Product Color:White

Product Features:有优良的耐水性,耐化学药剂(化学环境下性能稳定),良好的电器性。适用于200℃以下。

Product Explain:其他材料、规格、颜色可根据客户要求制作

ProductSite:Cross recessed countersunk hd

The number of attention:Since the 2009-07-13 Share Passengers

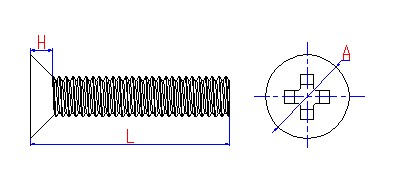

Product  Coding

A

H

槽号

M2

3.5-4.4

1.2

0

M3

5.2-6.3

1.7

M4

8.0-9.4

2.7

M5

8.9-10.4

2.7

M6

10.9-12.6

3.3

M8

15.4-17.3

4.6

M10

17.8-20.0

5



Product coding

Specifications



Product coding

Specifications

B0100I020040004

M2 ×0.4× 4mm



B0100I060100005

M6 ×1.0× 5mm

B0100I020040005

M2 ×0.4× 5mm



B0100I060100008

M6 ×1.0× 8mm

B0100I020040006

M2 ×0.4× 6mm



B0100I060100010

M6 ×1.0×10mm

B0100I020040008

M2 ×0.4× 8mm



B0100I060100012

M6 ×1.0×12mm

B0100I020040010

M2 ×0.4×10mm



B0100I060100030

M6 ×1.0×30mm

B0100I020040012

M2 ×0.4×12mm



B0100I060100035

M6 ×1.0×35mm

B0100I020040016

M2 ×0.4×16mm



B0100I060100040

M6 ×1.0×40mm

B0100I020040020

M2 ×0.4×20mm



B0100I060100045

M6 ×1.0×45mm





B0100I060100050

M6 ×1.0×50mm

B0100I030050005

M3 ×0.5× 5mm



B0100I060100055

M6 ×1.0×55mm

B0100I030050006

M3 ×0.5× 6mm



B0100I060100060

M6 ×1.0×60mm

B0100I030050008

M3 ×0.5× 8mm



B0100I060100065

M6 ×1.0×65mm

B0100I030050010

M3 ×0.5×10mm



B0100I060100070

M6 ×1.0×70mm

B0100I030050012

M3 ×0.5×12mm





B0100I030050016

M3 ×0.5×16mm



B0100I080125010

M8 ×1.25×10mm

B0100I030050020

M3 ×0.5×20mm



B0100I080125016

M8 ×1.25×16mm

B0100I030050025

M3 ×0.5×25mm



B0100I080125020

M8 ×1.25×20mm

B0100I030050030

M3 ×0.5×30mm



B0100I080125025

M8 ×1.25×25mm





B0100I080125030

M8 ×1.25×30mm

B0100I040070004

M4 ×0.7× 4mm



B0100I080125035

M8 ×1.25×35mm

B0100I040070006

M4 ×0.7× 6mm



B0100I080125040

M8 ×1.25×40mm

B0100I040070008

M4 ×0.7× 8mm



B0100I080125050

M8 ×1.25×50mm

B0100I040070010

M4 ×0.7×10mm



B0100I080125060

M8 ×1.25×60mm

B0100I040070012

M4 ×0.7×12mm



B0100I080125070

M8 ×1.25×70mm

B0100I040070016

M4 ×0.7×16mm





B0100I040070020

M4 ×0.7×20mm



B0100I100150012

M10×1.5×12mm

B0100I040070025

M4 ×0.7×25mm



B0100I100150016

M10×1.5×16mm

B0100I040070030

M4 ×0.7×30mm



B0100I100150020

M10×1.5×20mm

B0100I040070035

M4 ×0.7×35mm



B0100I100150025

M10×1.5×25mm

B0100I040070040

M4 ×0.7×40mm



B0100I100150030

M10×1.5×30mm





B0100I100150035

M10×1.5×35mm

B0100I050080006

M5 ×0.8× 6mm



B0100I100150040

M10×1.5×40mm

B0100I050080008

M5 ×0.8× 8mm



B0100I100150050

M10×1.5×50mm

B0100I050080010

M5 ×0.8×10mm



B0100I100150060

M10×1.5×60mm

B0100I050080012

M5 ×0.8×12mm







B0100I050080016

M5 ×0.8×16mm







B0100I050080020

M5 ×0.8×20mm







B0100I050080025

M5 ×0.8×25mm







B0100I050080030

M5 ×0.8×30mm







B0100I050080035

M5 ×0.8×35mm







B0100I050080040

M5 ×0.8×40mm
