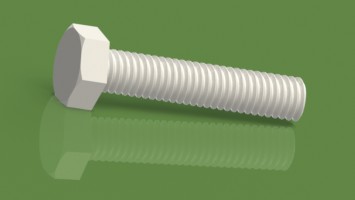

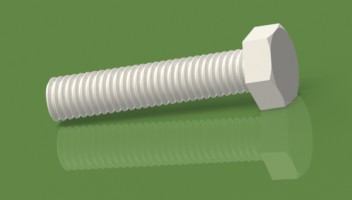

[推荐]Hexagon Cap Head Screws-PP

Product   Coding

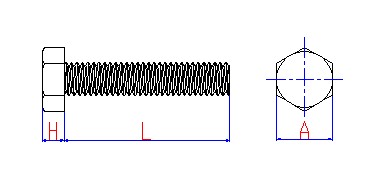

A

H

M2

3.8-4.0

1.3-1.4

M3

5.3-5.5

1.8-2.0

M4

6.78-7.0

2.6-2.8

M5

7.78-8.0

3.4-3.6

M6

9.78-10.0

3.9-4.1

M8

12.73-13.00

5.15-5.45

M10

15.73-16.00

6.3-6.5

M12

17.73-18.00

7.8-8.0

M14

20.67-21.00

8.51-8.8

M16

23.67-24.00

9.82-10.0

M18

26.67-27.00

11.15-11.5

M20

29.67-30.00

12.28-12.5

Product coding

Specifications

Product coding

Specifications

B0100J020040004

M2 ×0.4× 4mm

B0100J120175010

M12×1.75×10mm

B0100J020040005

M2 ×0.4× 5mm

B0100J120175016

M12×1.75×16mm

B0100J020040006

M2 ×0.4× 6mm

B0100J120175020

M12×1.75×20mm

B0100J020040008

M2 ×0.4× 8mm

B0100J120175025

M12×1.75×25mm

B0100J020040010

M2 ×0.4×10mm

B0100J120175030

M12×1.75×30mm

B0100J020040012

M2 ×0.4×12mm

B0100J120175035

M12×1.75×35mm

B0100J020040016

M2 ×0.4×16mm

B0100J120175040

M12×1.75×40mm

B0100J020040020

M2 ×0.4×20mm

B0100J120175050

M12×1.75×50mm

B0100J120175060

M12×1.75×60mm

B0100J030050005

M3 ×0.5× 5mm

B0100J120175065

M12×1.75×65mm

B0100J030050006

M3 ×0.5× 6mm

B0100J120175070

M12×1.75×70mm

B0100J030050008

M3 ×0.5× 8mm

B0100J120175075

M12×1.75×75mm

B0100J030050010

M3 ×0.5×10mm

B0100J120175080

M12×1.75×80mm

B0100J030050012

M3 ×0.5×12mm

B0100J120175085

M12×1.75×85mm

B0100J030050016

M3 ×0.5×16mm

B0100J120175090

M12×1.75×90mm

B0100J030050020

M3 ×0.5×20mm

B0100J120175095

M12×1.75×95mm

B0100J030050025

M3 ×0.5×25mm

B0100J120175100

M12×1.75×100mm

B0100J030050030

M3 ×0.5×30mm

B0100J140200012

M14×2.0×12mm

B0100J040070004

M4 ×0.7× 4mm

B0100J140200016

M14×2.0×16mm

B0100J040070006

M4 ×0.7× 6mm

B0100J140200020

M14×2.0×20mm

B0100J040070008

M4 ×0.7× 8mm

B0100J140200025

M14×2.0×25mm

B0100J040070010

M4 ×0.7×10mm

B0100J140200030

M14×2.0×30mm

B0100J040070012

M4 ×0.7×12mm

B0100J140200040

M14×2.0×40mm

B0100J040070016

M4 ×0.7×16mm

B0100J140200045

M14×2.0×45mm

B0100J040070020

M4 ×0.7×20mm

B0100J140200050

M14×2.0×50mm

B0100J040070025

M4 ×0.7×25mm

B0100J140200055

M14×2.0×55mm

B0100J040070030

M4 ×0.7×30mm

B0100J140200060

M14×2.0×60mm

B0100J040070035

M4 ×0.7×35mm

B0100J140200065

M14×2.0×65mm

B0100J040070040

M4 ×0.7×40mm

B0100J140200070

M14×2.0×70mm

B0100J140200075

M14×2.0×75mm

B0100J050080006

M5 ×0.8× 6mm

B0100J140200080

M14×2.0×80mm

B0100J050080008

M5 ×0.8× 8mm

B0100J140200085

M14×2.0×85mm

B0100J050080010

M5 ×0.8×10mm

B0100J140200090

M14×2.0×90mm

B0100J050080012

M5 ×0.8×12mm

B0100J140200095

M14×2.0×95mm

B0100J050080016

M5 ×0.8×16mm

B0100J140200100

M14×2.0×100mm

B0100J050080020

M5 ×0.8×20mm

B0100J140200110

M14×2.0×110mm

B0100J050080025

M5 ×0.8×25mm

B0100J140200120

M14×2.0×120mm

B0100J050080030

M5 ×0.8×30mm

B0100J140200130

M14×2.0×130mm

B0100J050080040

M5 ×0.8×40mm

B0100J140200140

M14×2.0×140mm

B0100J140200150

M14×2.0×150mm

B0100J060100005

M6 ×1.0× 5mm

B0100J060100008

M6 ×1.0× 8mm

B0100J160200040

M16×2.0×040mm

B0100J060100010

M6 ×1.0×10mm

B0100J160200050

M16×2.0×050mm

B0100J060100012

M6 ×1.0×12mm

B0100J160200060

M16×2.0×060mm

B0100J060100016

M6 ×1.0×16mm

B0100J160200070

M16×2.0×070mm

B0100J060100020

M6 ×1.0×20mm

B0100J160200080

M16×2.0×080mm

B0100J060100025

M6 ×1.0×25mm

B0100J160200090

M16×2.0×090mm

B0100J060100030

M6 ×1.0×30mm

B0100J160200100

M16×2.0×100mm

B0100J060100035

M6 ×1.0×35mm

B0100J160200110

M16×2.0×110mm

B0100J060100040

M6 ×1.0×40mm

B0100J160200120

M16×2.0×120mm

B0100J060100045

M6 ×1.0×45mm

B0100J160200130

M16×2.0×130mm

B0100J060100050

M6 ×1.0×50mm

B0100J160200140

M16×2.0×140mm

B0100J060100060

M6 ×1.0×60mm

B0100J160200150

M16×2.0×150mm

B0100J060100070

M6 ×1.0×70mm

B0100J160200160

M16×2.0×160mm

B0100J160200170

M16×2.0×170mm

B0100J080125010

M8 ×1.25×10mm

B0100J160200180

M16×2.0×180mm

B0100J080125016

M8 ×1.25×16mm

B0100J160200190

M16×2.0×190mm

B0100J080125020

M8 ×1.25×20mm

B0100J160200200

M16×2.0×200mm

B0100J080125025

M8 ×1.25×25mm

B0100J080125030

M8 ×1.25×30mm

B0100J180250040

M18×2.5×040mm

B0100J080125035

M8 ×1.25×35mm

B0100J180250050

M18×2.5×050mm

B0100J080125040

M8 ×1.25×40mm

B0100J180250060

M18×2.5×060mm

B0100J080125050

M8 ×1.25×50mm

B0100J180250070

M18×2.5×070mm

B0100J080125060

M8 ×1.25×60mm

B0100J180250080

M18×2.5×080mm

B0100J080125070

M8 ×1.25×70mm

B0100J180250090

M18×2.5×090mm

B0100J080125075

M8 ×1.25×75mm

B0100J180250100

M18×2.5×100mm

B0100J080125080

M8 ×1.25×80mm

B0100J180250110

M18×2.5×110mm

B0100J080125085

M8 ×1.25×85mm

B0100J180250120

M18×2.5×120mm

B0100J080125090

M8 ×1.25×90mm

B0100J180250130

M18×2.5×130mm

B0100J080125095

M8 ×1.25×95mm

B0100J180250140

M18×2.5×140mm

B0100J080125100

M8 ×1.25×100mm

B0100J180250150

M18×2.5×150mm

B0100J180250160

M18×2.5×160mm

B0100J100150010

M10×1.5×10mm

B0100J180250170

M18×2.5×170mm

B0100J100150020

M10×1.5×20mm

B0100J180250180

M18×2.5×180mm

B0100J100150025

M10×1.5×25mm

B0100J180250190

M18×2.5×190mm

B0100J100150030

M10×1.5×30mm

B0100J180250200

M18×2.5×200mm

B0100J100150035

M10×1.5×35mm

B0100J100150040

M10×1.5×40mm

B0100J200250040

M20×2.5×040mm

B0100J100150050

M10×1.5×50mm

B0100J200250050

M20×2.5×050mm

B0100J100150060

M10×1.5×60mm

B0100J200250060

M20×2.5×060mm

B0100J100150065

M10×1.5×65mm

B0100J200250070

M20×2.5×070mm

B0100J100150070

M10×1.5×70mm

B0100J200250080

M20×2.5×080mm

B0100J100150075

M10×1.5×75mm

B0100J200250090

M20×2.5×090mm

B0100J100150080

M10×1.5×80mm

B0100J200250100

M20×2.5×100mm

B0100J100150085

M10×1.5×85mm

B0100J200250110

M20×2.5×110mm

B0100J100150090

M10×1.5×90mm

B0100J200250120

M20×2.5×120mm

B0100J100150095

M10×1.5×95mm

B0100J200250130

M20×2.5×130mm

B0100J100150100

M10×1.5×100mm

B0100J200250140

M20×2.5×140mm

B0100J200250150

M20×2.5×150mm

B0100J200250160

M20×2.5×160mm

B0100J200250170

M20×2.5×170mm

B0100J200250180

M20×2.5×180mm

B0100J200250190

M20×2.5×190mm

B0100J200250200

M20×2.5×200mm
