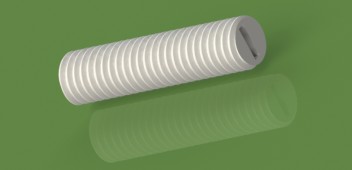

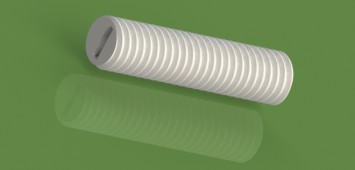

[推荐]Socket set Screws-DIN

Socket set Screws-DIN

Product Price:面议/电议

Product Material:PA66/PP/PPS/PVDF/PC/PA+GF/PP+GF

Product Color:Natural Color

Product Features:综合性能优良,机械强度高,耐磨性高,耐腐蚀,绝缘性良好,无磁性,阻燃,重量轻等.

Product Explain:其他材料、规格、颜色可根据客户要求制作。

ProductSite:Screws

The number of attention:Since the 2011-07-04 Share Passengers

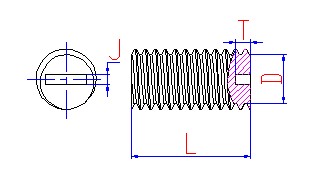

Product   Coding

D

T

J

M3

2

1.05

0.6

M4

2.5

1.42

0.8

M5

3.5

1.63

1

M6

4.1

2

1.2

M8

5.5

2.5

1.51

M10

7

3

1.91



Product coding

Specifications



Product coding

Specifications

B0000R030050005

M3 ×0.5× 5mm



B0000R060100008

M6 ×1.0× 8mm

B0000R030050006

M3 ×0.5× 6mm



B0000R060100010

M6 ×1.0×10mm

B0000R030050008

M3 ×0.5× 8mm



B0000R060100012

M6 ×1.0×12mm

B0000R030050010

M3 ×0.5×10mm



B0000R060100016

M6 ×1.0×16mm

B0000R030050012

M3 ×0.5×12mm



B0000R060100020

M6 ×1.0×20mm

B0000R030050016

M3 ×0.5×16mm



B0000R060100025

M6 ×1.0×25mm





B0000R060100030

M6 ×1.0×30mm

B0000R040070006

M4 ×0.7× 6mm



B0000R060100040

M6 ×1.0×40mm

B0000R040070008

M4 ×0.7× 8mm



B0000R060100050

M6 ×1.0×50mm

B0000R040070010

M4 ×0.7×10mm



B0000R060100060

M6 ×1.0×60mm

B0000R040070012

M4 ×0.7×12mm





B0000R040070016

M4 ×0.7×16mm



B0000R080125010

M8 ×1.25×10mm

B0000R040070020

M4 ×0.7×20mm



B0000R080125016

M8 ×1.25×16mm

B0000R040070025

M4 ×0.7×25mm



B0000R080125020

M8 ×1.25×20mm

B0000R040070040

M4 ×0.7×40mm



B0000R080125025

M8 ×1.25×25mm





B0000R080125030

M8 ×1.25×30mm

B0000R050080006

M5 ×0.8× 6mm



B0000R080125035

M8 ×1.25×35mm

B0000R050080008

M5 ×0.8× 8mm



B0000R080125040

M8 ×1.25×40mm

B0000R050080010

M5 ×0.8×10mm



B0000R080125050

M8 ×1.25×50mm

B0000R050080012

M5 ×0.8×12mm



B0000R080125060

M8 ×1.25×60mm

B0000R050080016

M5 ×0.8×16mm





B0000R050080020

M5 ×0.8×20mm



B0000R100150020

M10×1.5×20mm

B0000R050080025

M5 ×0.8×25mm



B0000R100150025

M10×1.5×25mm

B0000R050080030

M5 ×0.8×30mm



B0000R100150030

M10×1.5×30mm







B0000R100150035

M10×1.5×35mm







B0000R100150040

M10×1.5×40mm







B0000R100150050

M10×1.5×50mm







B0000R100150060

M10×1.5×60mm
