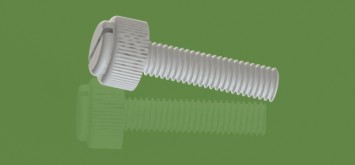

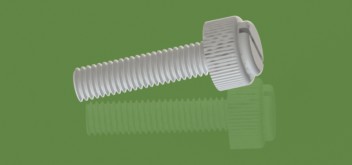

[推荐]Slotted knurled thumb Screws-PA66

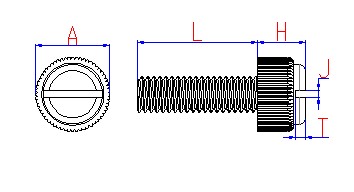

Product  Coding

A

H

T(≥)

J

M3

5.3-5.6

1.6-1.8

0.7

0.8-1.0

M4

7.7-8.0

2.2-2.4

1

1.0-1.3

M5

9.14-9.5

2.7-3.0

1.2

1.2-1.5

M6

11.5-12.0

3.3-3.6

1.4

1.6-1.9

M8

16.5-17

9.2-10.2

2

1.6-2.0

Product coding

Specifications

Product coding

Specifications

B0000T030050005

M3 ×0.5× 5mm

B0000T050080006

M5 ×0.8× 6mm

B0000T030050006

M3 ×0.5× 6mm

B0000T050080008

M5 ×0.8× 8mm

B0000T030050008

M3 ×0.5× 8mm

B0000T050080010

M5 ×0.8×10mm

B0000T030050010

M3 ×0.5×10mm

B0000T050080012

M5 ×0.8×12mm

B0000T030050012

M3 ×0.5×12mm

B0000T050080016

M5 ×0.8×16mm

B0000T030050016

M3 ×0.5×16mm

B0000T050080020

M5 ×0.8×20mm

B0000T030050020

M3 ×0.5×20mm

B0000T050080025

M5 ×0.8×25mm

B0000T030050025

M3 ×0.5×25mm

B0000T050080030

M5 ×0.8×30mm

B0000T030050030

M3 ×0.5×30mm

B0000T050080035

M5 ×0.8×35mm

B0000T050080040

M5 ×0.8×40mm

B0000T040070004

M4 ×0.7× 4mm

B0000T040070006

M4 ×0.7× 6mm

B0000T060100005

M6 ×1.0× 5mm

B0000T040070008

M4 ×0.7× 8mm

B0000T060100008

M6 ×1.0× 8mm

B0000T040070010

M4 ×0.7×10mm

B0000T060100010

M6 ×1.0×10mm

B0000T040070012

M4 ×0.7×12mm

B0000T060100012

M6 ×1.0×12mm

B0000T040070016

M4 ×0.7×16mm

B0000T060100016

M6 ×1.0×16mm

B0000T040070020

M4 ×0.7×20mm

B0000T060100020

M6 ×1.0×20mm

B0000T040070025

M4 ×0.7×25mm

B0000T060100025

M6 ×1.0×25mm

B0000T040070030

M4 ×0.7×30mm

B0000T060100030

M6 ×1.0×30mm

B0000T040070035

M4 ×0.7×35mm

B0000T060100035

M6 ×1.0×35mm

B0000T040070040

M4 ×0.7×40mm

B0000T060100040

M6 ×1.0×40mm

B0000T060100050

M6 ×1.0×50mm

B0000T060100060

M6 ×1.0×60mm

B0000T080125010

M8×1.25×10mm

B0000T080125012

M8×1.25×12mm

B0000T080125016

M8×1.25×16mm

B0000T080125020

M8×1.25×20mm

B0000T080125025

M8×1.25×25mm

B0000T080125030

M8×1.25×30mm

B0000T080125035

M8×1.25×35mm

B0000T080125040

M8×1.25×40mm

B0000T080125050

M8×1.25×50mm

B0000T080125060

M8×1.25×60mm
