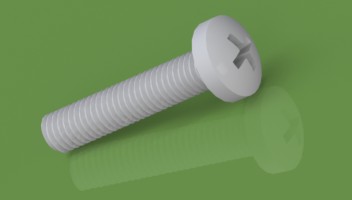

[推荐]Philips cross recessed Pan Head Screws-PPS

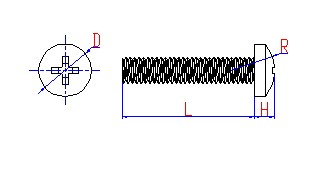

Product  Coding

D

H

R

槽号

M2

3.7-4.0

1.1-1.3

3.2

0

M3

5.3-5.6

1.6-1.8

5

Ⅰ

M4

7.7-8.0

2.2-2.4

6.5

Ⅱ

M5

9.14-9.5

2.7-3.0

8

Ⅱ

M6

11.5-12.0

3.3-3.6

10

Ⅲ

M8

15.57-16.0

4.5-4.8

13

Ⅴ

M10

19.8-20.0

5.7-6.0

16

Ⅴ

Product coding

Specifications

Product coding

Specifications

B0600P020040004

M2 ×0.4× 4mm

B0600P060100005

M6 ×1.0× 5mm

B0600P020040005

M2 ×0.4× 5mm

B0600P060100008

M6 ×1.0× 8mm

B0600P020040006

M2 ×0.4× 6mm

B0600P060100010

M6 ×1.0×10mm

B0600P020040008

M2 ×0.4× 8mm

B0600P060100012

M6 ×1.0×12mm

B0600P020040010

M2 ×0.4×10mm

B0600P060100030

M6 ×1.0×30mm

B0600P020040012

M2 ×0.4×12mm

B0600P060100035

M6 ×1.0×35mm

B0600P020040016

M2 ×0.4×16mm

B0600P060100040

M6 ×1.0×40mm

B0600P020040020

M2 ×0.4×20mm

B0600P060100045

M6 ×1.0×45mm

B0600P060100050

M6 ×1.0×50mm

B0600P030050005

M3 ×0.5× 5mm

B0600P060100055

M6 ×1.0×55mm

B0600P030050006

M3 ×0.5× 6mm

B0600P060100060

M6 ×1.0×60mm

B0600P030050008

M3 ×0.5× 8mm

B0600P060100065

M6 ×1.0×65mm

B0600P030050010

M3 ×0.5×10mm

B0600P060100070

M6 ×1.0×70mm

B0600P030050012

M3 ×0.5×12mm

B0600P030050016

M3 ×0.5×16mm

B0600P080125010

M8 ×1.25×10mm

B0600P030050020

M3 ×0.5×20mm

B0600P080125016

M8 ×1.25×16mm

B0600P030050025

M3 ×0.5×25mm

B0600P080125020

M8 ×1.25×20mm

B0600P030050030

M3 ×0.5×30mm

B0600P080125025

M8 ×1.25×25mm

B0600P080125030

M8 ×1.25×30mm

B0600P040070004

M4 ×0.7× 4mm

B0600P080125035

M8 ×1.25×35mm

B0600P040070006

M4 ×0.7× 6mm

B0600P080125040

M8 ×1.25×40mm

B0600P040070008

M4 ×0.7× 8mm

B0600P080125050

M8 ×1.25×50mm

B0600P040070010

M4 ×0.7×10mm

B0600P080125060

M8 ×1.25×60mm

B0600P040070012

M4 ×0.7×12mm

B0600P080125070

M8 ×1.25×70mm

B0600P040070016

M4 ×0.7×16mm

B0600P040070020

M4 ×0.7×20mm

B0600P100150010

M10 ×1.5×10mm

B0600P040070025

M4 ×0.7×25mm

B0600P100150012

M10 ×1.5×12mm

B0600P040070030

M4 ×0.7×30mm

B0600P100150016

M10 ×1.5×16mm

B0600P040070035

M4 ×0.7×35mm

B0600P100150020

M10 ×1.5×20mm

B0600P040070040

M4 ×0.7×40mm

B0600P100150025

M10 ×1.5×25mm

B0600P100150030

M10 ×1.5×30mm

B0600P050080006

M5 ×0.8× 6mm

B0600P100150035

M10 ×1.5×35mm

B0600P050080008

M5 ×0.8× 8mm

B0600P100150040

M10 ×1.5×40mm

B0600P050080010

M5 ×0.8×10mm

B0600P100150050

M10 ×1.5×50mm

B0600P050080012

M5 ×0.8×12mm

B0600P100150060

M10 ×1.5×60mm

B0600P050080016

M5 ×0.8×16mm

B0600P050080020

M5 ×0.8×20mm

B0600P050080025

M5 ×0.8×25mm

B0600P050080030

M5 ×0.8×30mm

B0600P050080035

M5 ×0.8×35mm

B0600P050080040

M5 ×0.8×40mm
